Setting up the Dashboard
Before using the dashboard it needs to be set up in the Update screen.
To edit templates, maintain settings and refresh the data in the excel sheets click the Update button at the Dashboard screen.
The Update screen contain tabs for each category and a general tab. All tabs contain buttons for editing templates, creating demo files, closing the Update screen and an Update button to refresh data.
Users can configure the data to be used. This will be explained per category in the next sections.
Note
Please be aware of the fact that the configuration is shared with all users.
Edit templates
The dashboard is based on Excel templates. Mill7 fills data in the background sheets (called Data1, Data2, etc) of the template.
The user can edit the first nine sheets in the Excel template for presentations of the data.
How this is works is described in the last topic of this section.

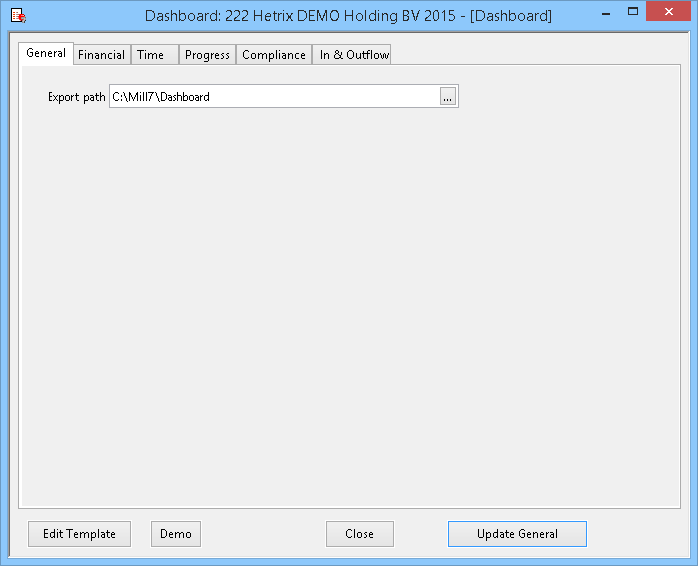

General tab

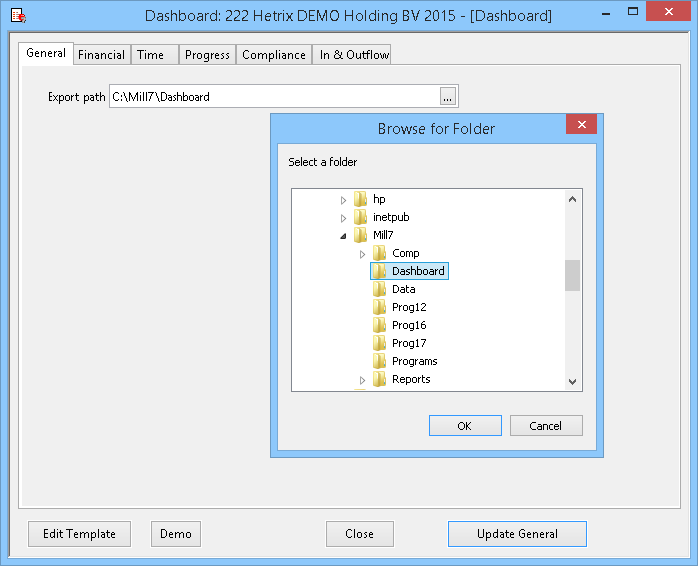

In the General tab a path is set to a folder in which the Excel files will be stored.
To update all graphs from all categories in one go, click the Update general button on the General tab.
To update a specific category of graphs, choose the update button on the tab of that specific category.
